Two-, three- or four-channel atmosphere controllers for separate culture jars, with a 7-inch touch display and model-specific gas connections.
- Two, three or four channels
- Touch control and startup checks
- Separate jars and gas filtration

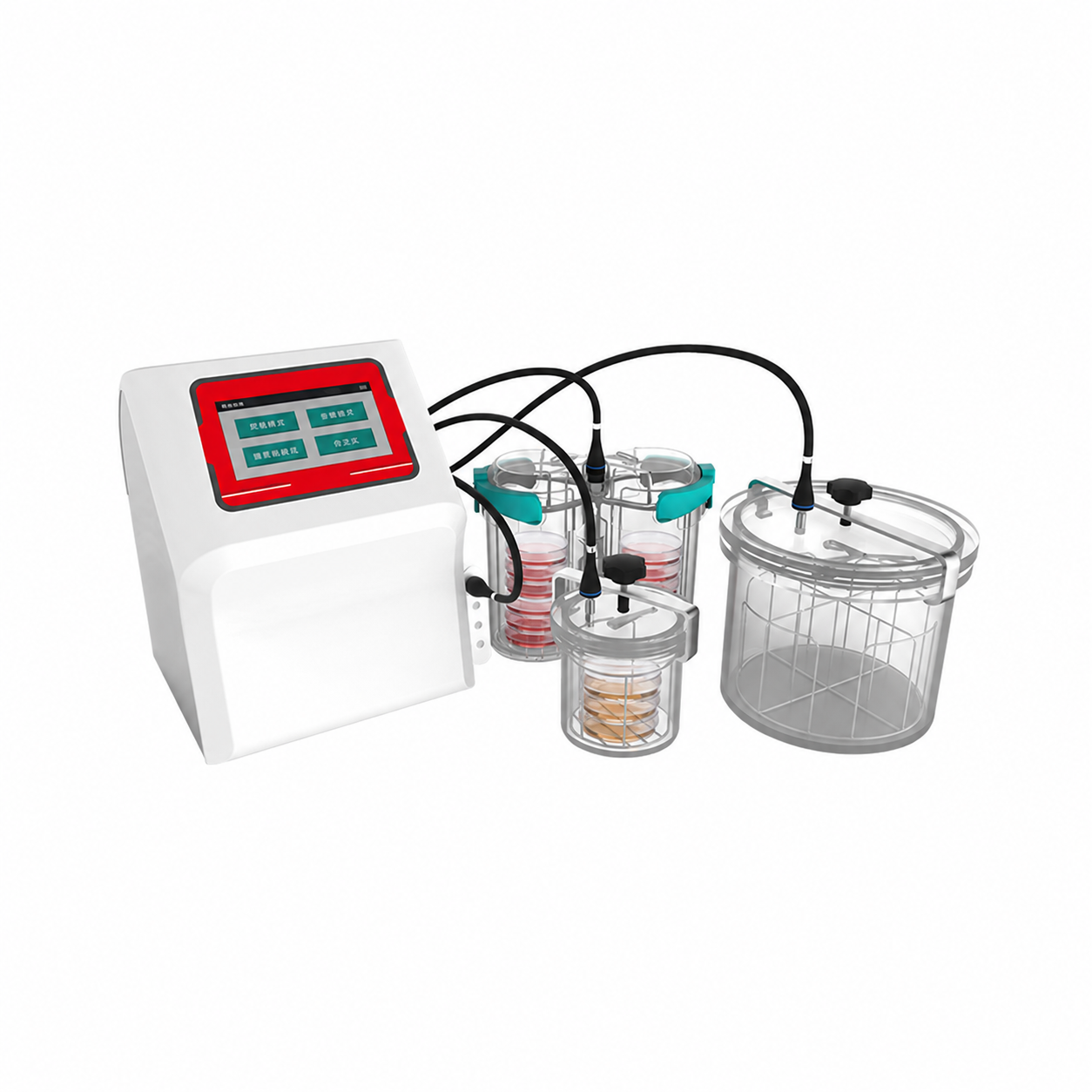

Representative controller and available jar formats. The pictured jars do not define the supplied quantity; select two, three or four channels by model.
Technical Information
| Model | Jar channels |
|---|
| PT-ANC-002 | 2 |
| PT-ANC-004 | 3 |
| PT-ANC-005 | 4 |
| Parameter | Value |
|---|
| Oxygen range | 0–20% |
| CO2 range | 5–20% |
| Operating environment | 10–35 °C / 20–80% RH |
| Input power (W) | 616 W |
| Electrical supply | 220 V / 50–60 Hz |
| Jar formats: 90 mm plates | 6 / 12 / 24 / 48 |
| Listed jar pressure range | -0.01–0.11 MPa |
Standard Configuration
A 7-inch resistive touch controller with startup self-checks, anaerobic, 6% microaerobic and custom modes; multichannel tubing, a tubing rack, vacuum pump and exhaust-gas filtration. Clear acrylic jars use sealed clamps and plate racks. The system checks gas supply, connections, sealing and catalyst activity. Select jar formats and quantities in the quotation; the jars are used with a separately selected incubator.
Optional Accessories
Confirm jar capacity and count, catalyst consumables, compatible gas source and regulator, connection kit and a suitable separate incubator. Jar capacities and quantities are specified individually.
Downloads
Download the complete datasheet for model specifications and configuration details.
Download PDF - English
Selection / Ordering Information
Specify the PRECETTA model, required atmosphere, chamber or jar configuration, site utilities and accessories. Confirm the gas and vacuum connections, supplied items and operating conditions before ordering.
